Smoothflow System Sulfuric acid diluter
Brochures
Features
- Safe thanks to dilution while cooling reaction heating No leakage concerns with in-line dilution
- Teflon lining in piping for excellent corrosion and heat resistance
- Drastically reduced installation space thanks to eliminated need for a mixing tank
- No drive units besides pump for trouble-free maintenance
Application examples
- Caustic soda dilution
- Alcohol dilution
- Dilution of various chemical solutions

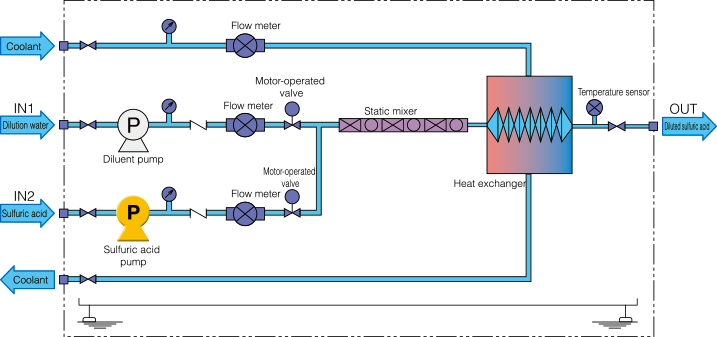

Flow diagram Flow chart
Example of performance specifications
Please contact us for details of customized specications.
| Pump feed volume | A : Up to 1567.5L/h B : Up to 773.6L/h |
|---|---|
| Pump feed pressure | A : Up to 0.5MPa B : Up to 0.5MPa |
| Mix ratio range | 10:1 |
| Treated volume | 2222.2L/min |
| Weight | Approx. 2100kg |
| External dimensions (mm) | W2700 × H2200 × D2000 |
