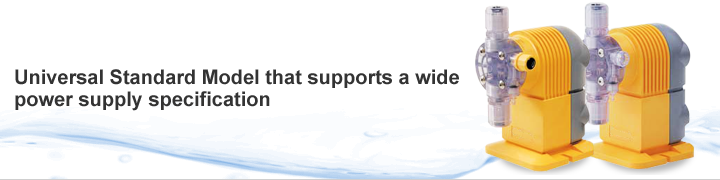

Solenoid-Driven Metering Pumps PZ

PZ

Features

Wide Voltage Range Power Supply

There is no need to worry about site power supply voltage or voltage fluctuations since it can be used with AC100 to 240 V (±10%) power supplies. You can also keep it in stock safely since it can be used for a variety of sites and applications.

Adjusting Dial for Easy Operation

Manual adjustment from 15 to 300 pulses per minute

Water- & Dust-Proof Specifications

IEC standard
IP65 or equivalent
  • *
    Avoid condensation and immersion in water.

Simple Structure

Minimum number of parts allows easy maintenance.

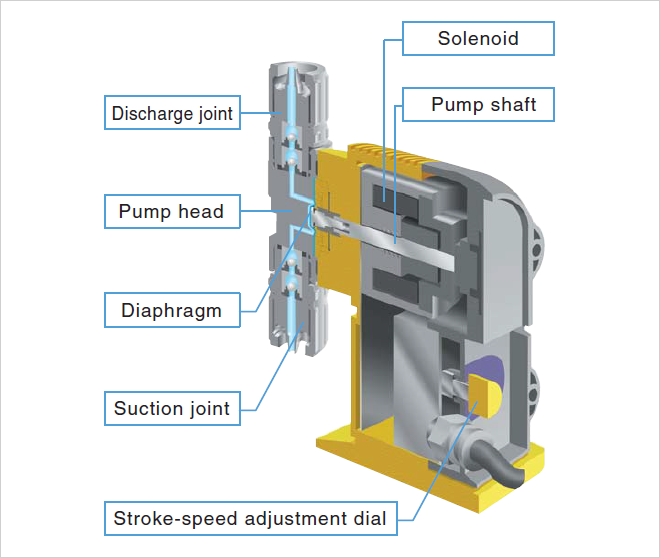

Solenoid Pump shaft Discharge joint Pump head Diaphragm Suction joint Stroke-speed adjustment dial

Extensive Range of Liquid-End Materials

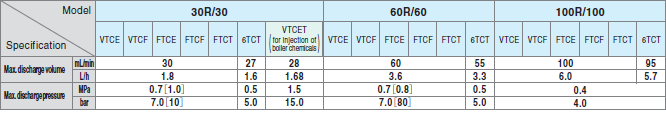

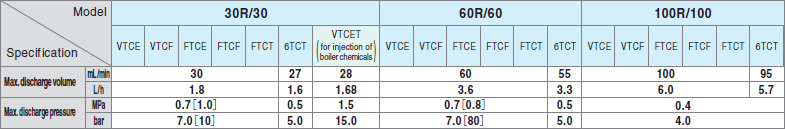

Specifications

30R/30 VTCE Max. discharge volume (mL/min) 30 Max. discharge volume (L/h) 1.8 Max. discharge pressure (MPa) 0.7[1.0] Max. discharge pressure (bar) 7.0[10] 30R/30 VTCF Max. discharge volume (mL/min) 30 Max. discharge volume (L/h) 1.8 Max. discharge pressure (MPa) 0.7[1.0] Max. discharge pressure (bar) 7.0[10] 30R/30 FTCE Max. discharge volume (mL/min) 30 Max. discharge volume (L/h) 1.8 Max. discharge pressure (MPa) 0.7[1.0] Max. discharge pressure (bar) 7.0[10] 30R/30 FTCF Max. discharge volume (mL/min) 30 Max. discharge volume (L/h) 1.8 Max. discharge pressure (MPa) 0.7[1.0] Max. discharge pressure (bar) 7.0[10] 30R/30 FTCT Max. discharge volume (mL/min) 30 Max. discharge volume (L/h) 1.8 Max. discharge pressure (MPa) 0.7[1.0] Max. discharge pressure (bar) 7.0[10] 30R/30 6TCT Max. discharge volume (mL/min) 27 Max. discharge volume (L/h) 1.6 Max. discharge pressure (MPa) 0.5 Max. discharge pressure (bar) 5.0 30R/30 VTCET(for injection of boiler chemicals) Max. discharge volume (mL/min) 28 Max. discharge volume (L/h) 1.68 Max. discharge pressure (MPa) 1.5 Max. discharge pressure (bar) 15.0 60R/60 VTCE Max. discharge volume (mL/min) 60 Max. discharge volume (L/h) 3.6 Max. discharge pressure (MPa) 0.7[0.8] Max. discharge pressure (bar) 7.0[80] 60R/60 VTCF Max. discharge volume (mL/min) 60 Max. discharge volume (L/h) 3.6 Max. discharge pressure (MPa) 0.7[0.8] Max. discharge pressure (bar) 7.0[80] 60R/60 FTCE Max. discharge volume (mL/min) 60 Max. discharge volume (L/h) 3.6 Max. discharge pressure (MPa) 0.7[0.8] Max. discharge pressure (bar) 7.0[80] 60R/60 FTCF Max. discharge volume (mL/min) 60 Max. discharge volume (L/h) 3.6 Max. discharge pressure (MPa) 0.7[0.8] Max. discharge pressure (bar) 7.0[80] 60R/60 FTCT Max. discharge volume (mL/min) 60 Max. discharge volume (L/h) 3.6 Max. discharge pressure (MPa) 0.7[0.8] Max. discharge pressure (bar) 7.0[80] 60R/60 6TCT Max. discharge volume (mL/min) 55 Max. discharge volume (L/h) 3.3 Max. discharge pressure (MPa) 0.5 Max. discharge pressure (bar) 5.0 100R/100 VTCE Max. discharge volume (mL/min) 100 Max. discharge volume (L/h) 6.0 Max. discharge pressure (MPa) 0.4 Max. discharge pressure (bar) 4.0 100R/100 VTCF Max. discharge volume (mL/min) 100 Max. discharge volume (L/h) 6.0 Max. discharge pressure (MPa) 0.4 Max. discharge pressure (bar) 4.0 100R/100 FTCE Max. discharge volume (mL/min) 100 Max. discharge volume (L/h) 6.0 Max. discharge pressure (MPa) 0.4 Max. discharge pressure (bar) 4.0 100R/100 FTCF Max. discharge volume (mL/min) 100 Max. discharge volume (L/h) 6.0 Max. discharge pressure (MPa) 0.4 Max. discharge pressure (bar) 4.0 100R/100 FTCT Max. discharge volume (mL/min) 100 Max. discharge volume (L/h) 6.0 Max. discharge pressure (MPa) 0.4 Max. discharge pressure (bar) 4.0 100R/100 6TCT Max. discharge volume (mL/min) 95 Max. discharge volume (L/h) 5.7 Max. discharge pressure (MPa) 0.4 Max. discharge pressure (bar) 4.0 Enlarge an image
