We want to safely dilute sodium hydroxide from a concentration of 48% to a concentration of 25%.

• A remarkable amount of heat is generated during the dilution, which poses the risk of the liquid splattering.
• The liquid is hazardous as it may result in serious disabilities if it comes into contact with the human body.

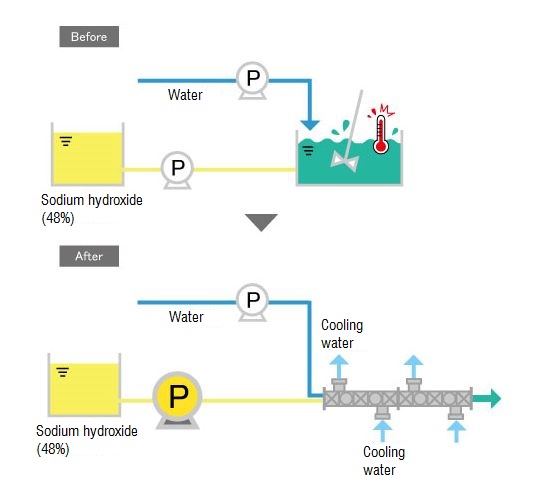

A system was created in which the liquid is transferred with a Smoothflow Pump and a static mixer is used to perform inline mixing.

• The liquid does not come into contact with the air, which enabled safe dilution.
• The continuous, constant flow with no pulsation stabilized the diluted concentration.
• The dilution heat could be removed with a heat exchanger for cooling.
• The need for a dilution tank was eliminated, which made it possible to use the system in a smaller space.
