Motor-Driven Metering Pumps Plunger Metering Pumps
Brochures
Features

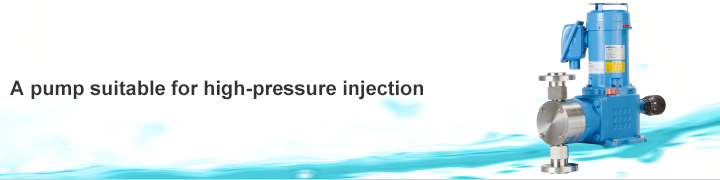

This type employs a two-stage valve set and is capable of high–precision, High-Pressure injection most suitable for boiler chemicals, etc. Extended product life is achieved by highly durable sealing system that is easy to maintain.
Application Products
Sanitary Type
Manufacturing process of pharmaceuticals, food, beverages.
Remote Head Type
For constant volume injection of high temperature fluids of 100°C-130°C (212°F-266°F).
Multiple Pump Type
For proportional injection of different fluids or simultaneous injection of a single fluid in multiple lines.
Combination Type Pump
Capable of injecting various different kinds of fluids with a single machine.
Options
Leak Monitor
In the unlikely event of a diaphragm rupture, this detects the abnormality and sends notification.
Pulse Sensor
Combining this with a pulse counter enables automatic control of the injection amount.
Specifications

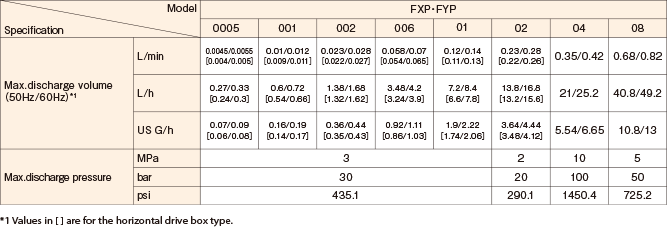

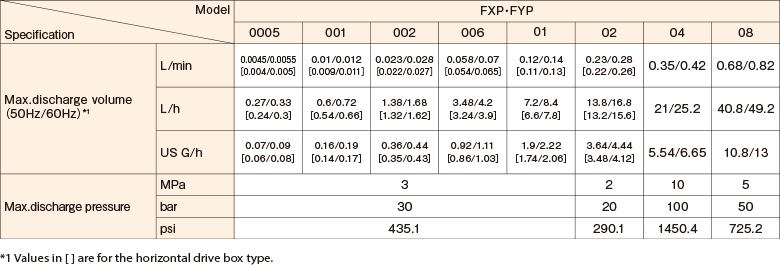

Model：0005～08（Max.discharge volume：0.004～0.82L/min）
![FXP・FYP 0005 Max. discharge volume (50Hz/60Hz)*1 (L/min) 0.0045/0.0055[0.004/0.005] Max. discharge volume (50Hz/60Hz)*1 (L/h) 0.27/0.33[0.24/0.3] Max. discharge volume (50Hz/60Hz)*1 (US G/h) 0.07/0.09[0.06/0.08] Max. discharge pressure (MPa) 3 Max. discharge pressure (bar) 30 Max. discharge pressure (psi) 435.1 FXP・FYP 001 Max. discharge volume (50Hz/60Hz)*1 (L/min) 0.01/0.012[0.009/0.011] Max. discharge volume (50Hz/60Hz)*1 (L/h) 0.6/0.72[0.54/0.66] Max. discharge volume (50Hz/60Hz)*1 (US G/h) 0.16/0.19[0.14/0.17] Max. discharge pressure (MPa) 3 Max. discharge pressure (bar) 30 Max. discharge pressure (psi) 435.1 FXP・FYP 002 Max. discharge volume (50Hz/60Hz)*1 (L/min) 0.023/0.028[0.022/0.027] Max. discharge volume (50Hz/60Hz)*1 (L/h) 1.38/1.68[1.32/1.62] Max. discharge volume (50Hz/60Hz)*1 (US G/h) 0.36/0.44[0.35/0.43] Max. discharge pressure (MPa) 3 Max. discharge pressure (bar) 30 Max. discharge pressure (psi) 435.1 FXP・FYP 006 Max. discharge volume (50Hz/60Hz)*1 (L/min) 0.058/0.07[0.054/0.065] Max. discharge volume (50Hz/60Hz)*1 (L/h) 3.48/4.2[3.24/3.9] Max. discharge volume (50Hz/60Hz)*1 (US G/h) 0.92/1.11[0.86/1.03] Max. discharge pressure (MPa) 3 Max. discharge pressure (bar) 30 Max. discharge pressure (psi) 435.1 FXP・FYP 01 Max. discharge volume (50Hz/60Hz)*1 (L/min) 0.12/0.14[0.11/0.13] Max. discharge volume (50Hz/60Hz)*1 (L/h) 7.2/8.4[6.6/7.8] Max. discharge volume (50Hz/60Hz)*1 (US G/h) 1.9/2.22[1.74/2.06] Max. discharge pressure (MPa) 3 Max. discharge pressure (bar) 30 Max. discharge pressure (psi) 435.1 FXP・FYP 02 Max. discharge volume (50Hz/60Hz)*1 (L/min) 0.23/0.28[0.22/0.26] Max. discharge volume (50Hz/60Hz)*1 (L/h) 13.8/16.8[13.2/15.6] Max. discharge volume (50Hz/60Hz)*1 (US G/h) 3.6/4.44[3.48/4.12] Max. discharge pressure (MPa) 2 Max. discharge pressure (bar) 20 Max. discharge pressure (psi) 290.1 FXP・FYP 04 Max. discharge volume (50Hz/60Hz)*1 (L/min) 0.35/0.42 Max. discharge volume (50Hz/60Hz)*1 (L/h) 21/25.2 Max. discharge volume (50Hz/60Hz)*1 (US G/h) 5.54/6.65 Max. discharge pressure (MPa) 10 Max. discharge pressure (bar) 100 Max. discharge pressure (psi) 1450.4 FXP・FYP 08 Max. discharge volume (50Hz/60Hz)*1 (L/min) 0.68/0.82 Max. discharge volume (50Hz/60Hz)*1 (L/h) 40.8/49.2 Max. discharge volume (50Hz/60Hz)*1 (US G/h) 10.8/13 Max. discharge pressure (MPa) 5 Max. discharge pressure (bar) 50 Max. discharge pressure (psi) 725.2 *1 Values in [ ] are for the horizontal drive box type.](/tacmina/public_com/products/pump/motor/images/plunger_spec-img-01-2.png)

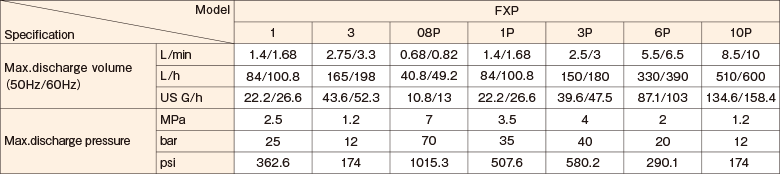

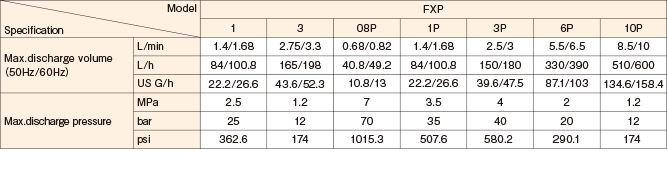

Model：1～10P（Max.discharge volume：1.4～10L/min）
