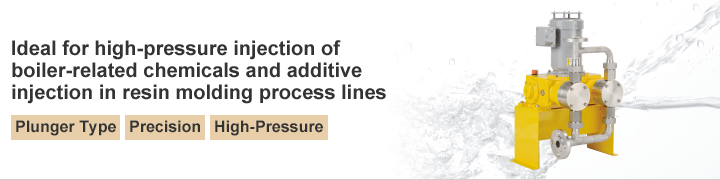

Smoothflow Pumps PL (Plunger)

PL (Plunger)

Features

No Reduction of the Flow Rate Even With Pressure Fluctuation.

Integrated backflow prevention means that the flow rate will not be reduced even when the pressure fluctuates. This is ideal for applications that require highly-accurate volume delivery such as mixing and coating pharmaceuticals and those that require accurate mixing ratios.

No Need for Dampener or Accumulator

Accumulators and other devices used generally reduce fluctuation have a slow response and, therefore, pressure control is indispensable. Smoothflow Pumps are quick to respond and there is no need for cumbersome pressure control and the associated maintenance for these devices..

Great Reduction in Potential Cause of Problems

A major source of problems is the process of stirring and mixing in the tank. This can be eliminated, significantly reducing the chance of accidents and failures.

Cost and Space Saving With Simpler Piping

Compared to conventional pumps that introduce pulsation, pulseless Smoothflow Pumps enable smaller diameter piping to be used on the discharge side. This reduces cost and the loss of transferred chemicals.

Excellent Responsiveness

In addition to pulseless operation, Smoothflow Pumps offer an instant response to flow rate change. Unlike the pulsation dampening achieved by a conventional air chamber, Smoothflow Pumps discharge immediately upon starting the operation and no liquid escapes when the operation is stopped, allowing for precise adjustment of supply volumes and mixing ratios.

Smoothflow System

We offer a system that you can count on, with a design that maximizes the potential of Smoothflow technology and a configuration that puts safety and maintainability first.

See here for details

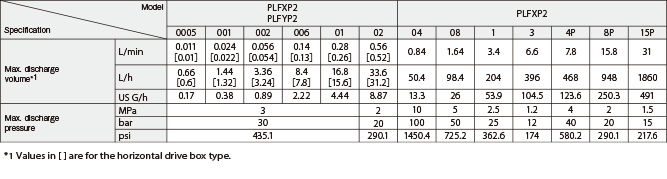

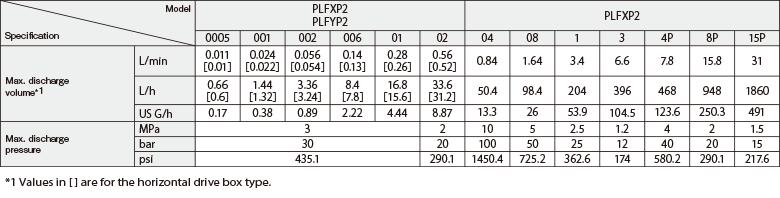

Specifications

PLF 0005 Max. discharge volume (L/min) 0.011 Max. discharge volume (L/h) 0.66 Max. discharge volume (US G/h) 0.2 Max. discharge pressure (MPa) 3 Max. discharge pressure (bar) 30 Max. discharge pressure (psi) 435.1 PLF 001 Max. discharge volume (L/min) 0.024 Max. discharge volume (L/h) 1.44 Max. discharge volume (US G/h) 0.4 Max. discharge pressure (MPa) 3 Max. discharge pressure (bar) 30 Max. discharge pressure (psi) 435.1 PLF 002 Max. discharge volume (L/min) 0.056 Max. discharge volume (L/h) 3.36 Max. discharge volume (US G/h) 0.9 Max. discharge pressure (MPa) 3 Max. discharge pressure (bar) 30 Max. discharge pressure (psi) 435.1 PLF 006 Max. discharge volume (L/min) 0.14 Max. discharge volume (L/h) 8.4 Max. discharge volume (US G/h) 2.2 Max. discharge pressure (MPa) 3 Max. discharge pressure (bar) 30 Max. discharge pressure (psi) 435.1 PLF 01 Max. discharge volume (L/min) 0.28 Max. discharge volume (L/h) 16.8 Max. discharge volume (US G/h) 4.4 Max. discharge pressure (MPa) 3 Max. discharge pressure (bar) 30 Max. discharge pressure (psi) 435.1 PLF 02 Max. discharge volume (L/min) 0.56 Max. discharge volume (L/h) 33.6 Max. discharge volume (US G/h) 8.9 Max. discharge pressure (MPa) 2 Max. discharge pressure (bar) 20 Max. discharge pressure (psi) 290.1 PLZ 020 Max. discharge volume (L/min) 0.84 Max. discharge volume (L/h) 50.4 Max. discharge volume (US G/h) 13.3 Max. discharge pressure (MPa) 10 Max. discharge pressure (bar) 100 Max. discharge pressure (psi) 1,450.40 PLZ 028 Max. discharge volume (L/min) 1.64 Max. discharge volume (L/h) 98.4 Max. discharge volume (US G/h) 26 Max. discharge pressure (MPa) 5 Max. discharge pressure (bar) 50 Max. discharge pressure (psi) 725.2 PLZ 040 Max. discharge volume (L/min) 3.4 Max. discharge volume (L/h) 204 Max. discharge volume (US G/h) 53.9 Max. discharge pressure (MPa) 2.5 Max. discharge pressure (bar) 25 Max. discharge pressure (psi) 362.6 PLZ 056 Max. discharge volume (L/min) 6.6 Max. discharge volume (L/h) 396 Max. discharge volume (US G/h) 104.5 Max. discharge pressure (MPa) 1.2 Max. discharge pressure (bar) 12 Max. discharge pressure (psi) 174 PLF 4P Max. discharge volume (L/min) 7.8 Max. discharge volume (L/h) 468 Max. discharge volume (US G/h) 123.6 Max. discharge pressure (MPa) 4 Max. discharge pressure (bar) 40 Max. discharge pressure (psi) 580.2 PLF 8P Max. discharge volume (L/min) 15.8 Max. discharge volume (L/h) 948 Max. discharge volume (US G/h) 250.3 Max. discharge pressure (MPa) 2 Max. discharge pressure (bar) 20 Max. discharge pressure (psi) 290.1 PLF 15P Max. discharge volume (L/min) 31 Max. discharge volume (L/h) 1860 Max. discharge volume (US G/h) 491 Max. discharge pressure (MPa) 1.5 Max. discharge pressure (bar) 15 Max. discharge pressure (psi) 217.6 Enlarge an image
