Smoothflow System High-temperature slurry liquid supply device
Brochures
Features
- Keeping liquids that solidify at low temperatures at 80°C using temperature sensor and heat-insulating jacket
- Flow feedback control using mass flow meter
- High-precision, continuous supply of raw cosmetic material including slurries
Application examples
- Uniform supply of two liquids to a mixing device in cosmetic manufacturing processes

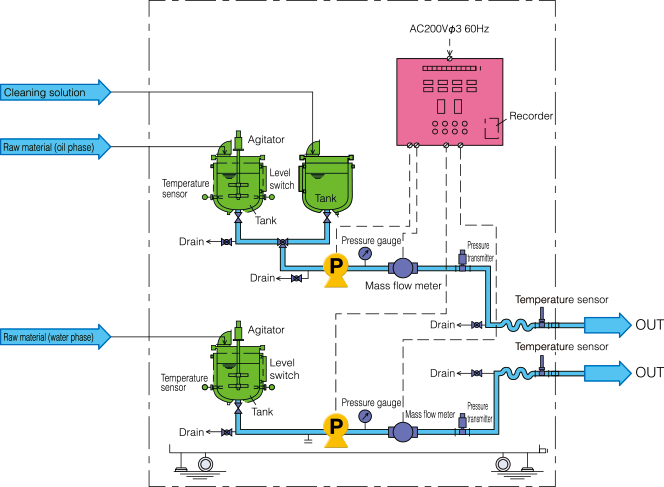

Flow diagram Flow chart
Example of performance specifications
Please contact us for details of customized specications.
| Pump feed volume | Up to 300mL/min |
|---|---|
| Pump feed pressure | Up to 0.5MPa |
| Weight | Approx. 500kg |
| External dimensions (mm) | W1050 × H1500 × D1400 |
