Smoothflow System Urea solution diluter
Brochures
Features
- Continuous, even dilution thanks to Smoothflow Pump and static mixer
- Manually adjustable flow rate with manual transmission
- Completely inline structure for elimination of odor leakage
- Inline dilution with no tank required for space-saving design
- Explosion proof specification
Application examples
- Continuous urea solution dilution
- Serial dilution of inflammable chemicals

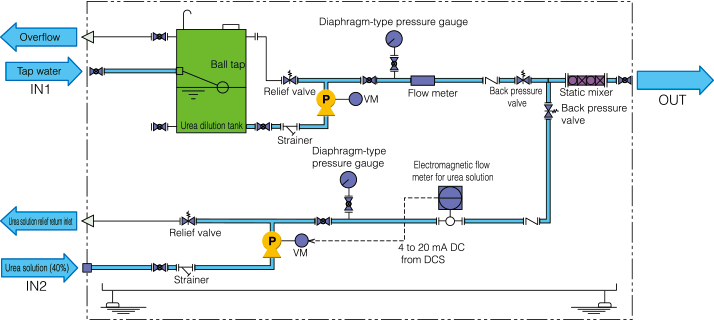

Flow diagram Flow chart
Example of performance specifications
Please contact us for details of customized specications.
| Tank Capacity | A : - B : 100L |
|---|---|
| Pump feed volume | A : Up to 720mL/min B : Up to 720mL/min |
| Pump feed pressure | A : Up to 1.0MPa B : Up to 1.0MPa |
| Mix ratio range | 1:1 to 1:600 |
| Treated volume | 1440mL/min |
| Weight | Approx. 150kg |
| External dimensions (mm) | W1200 × H1700 × D1300 |
