Smoothflow System Dual-liquid simultaneous diluter
Brochures
Features
- Dilute two liquids simultaneously
- Easily set dilution ration proportional to flow rate
- Inline configurable for reduced space requirements
- Continuous, even dilution thanks to Smoothflow Pump
- Shortened process and continuous operation for reduced labor
Application examples
- Simultaneous dilution of copper sulfate solution and reducing agent
- Simultaneous dilution of silver sulfate solution and reducing agent

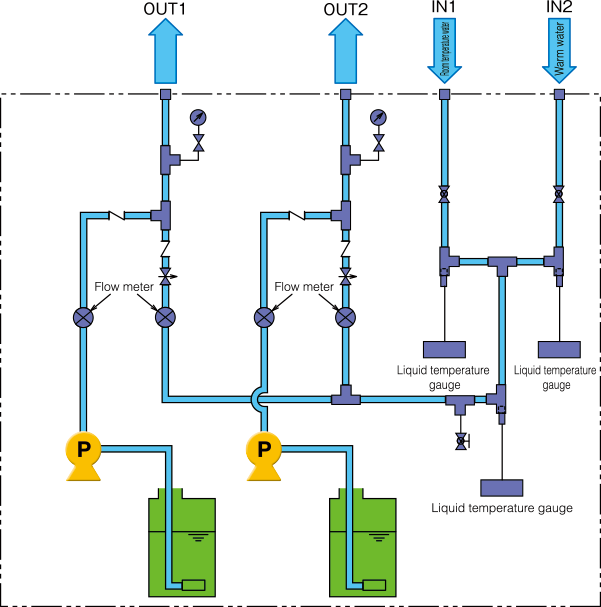

Flow diagram Flow chart
Example of performance specifications
Please contact us for details of customized specications.
| Tank Capacity | 200L |
|---|---|
| Pump feed volume | Up to 240mL/min |
| Pump feed pressure | Up to 1.0MPa |
| Mix ratio range | 1:1 to 1:175 |
| Treated volume | Up to 480mL/min |
| Weight | Approx. 165kg |
| External dimensions (mm) | W2000 × H450 × D1000 |
