Smoothflow System High-pressure additive injection unit
Brochures
Features
- Plunger-type Smoothflow Pump for continuous high pressure and constant additive injection regardless of pressure fluctuations in discharge-side piping
- Verification of actual injection amount using mass meter (optional signal output)
Application examples
- Additive injection to molding machines in resin molding lines

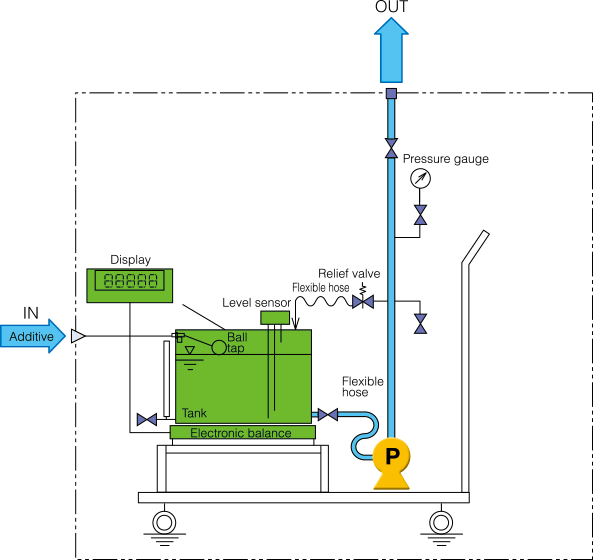

Flow diagram Flow chart
Example of performance specifications
Please contact us for details of customized specications.
| Tank Capacity | 10L |
|---|---|
| Pump feed volume | Up to 56mL/min |
| Pump feed pressure | Up to 7.0MPa |
| Weight | Approx. 80kg |
| External dimensions (mm) | W920 × H1250 × D650 |
