Smoothflow System High-precision slurry liquid supply device
Brochures
Features
- High-precision, continuous supply of special thin film coating liquids including slurries
- Primary-side feed accuracy monitoring through mass flow meter and pressure transmitter
- Easy disassembly and cleaning with sanitary piping
Application examples
- Stable supply of special slurry coating liquid in battery manufacturing processes
- High-precision continuous, quantitative transfer of slurry liquid

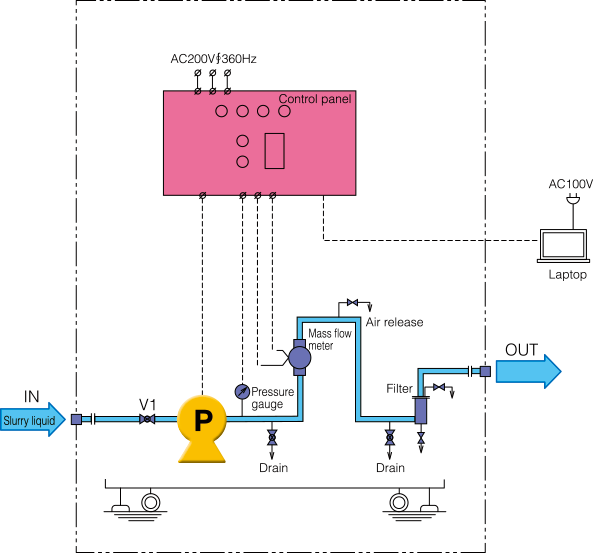

Flow diagram Flow chart
Example of performance specifications
Please contact us for details of customized specications.
Pump feed volume | Up to 3.5L/min |
---|---|
Pump feed pressure | Up to 0.5MPa |
Weight | Approx. 270kg |
External dimensions (mm) | W1500 × H1500 × D650 |
