Use CasesTransferring liquids that solidify when exposed to air

Liquid Type
Process Type
Industry
Problem

Customer

Casting manufacturer

Customer's Needs and Problems

A curing agent is added to sand during the process to create the sand mold for cast metal production.
A gear pump was used to supply the curing agent, controlling the amount to inject with a solenoid valve, which posed the following problem.

  • Curing agent leaking from the shaft seal of the pump solidifies and adheres to the pump when exposed to air, leading to pump malfunctions.

TACMINA's Solutions

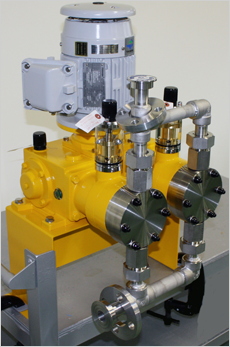

The gear pump was replaced with a Smoothflow Pump.

  • The completely sealed structure does not have a shaft seal, so the curing agent is never exposed to air.

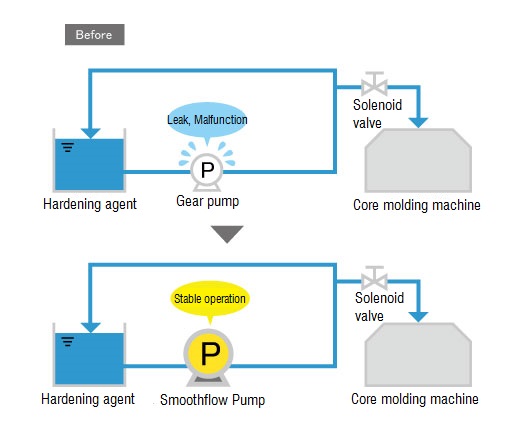

Flow Diagram

画像を拡大する


画像を拡大する
