Smoothflow System High-accuracy coating liquid supply system
Brochures
Features
- High feeding accuracy required by dye coaters
- Continuous measurement and accuracy monitoring with high-accuracy mass flow meter
- Built-in washing line with quick changing of liquid
- Data collection system for performance analysis
- Precise mixing of multiple liquids
Application examples
- Transfer/supply of film coating solution
- Coating liquid supply in electric/electronic material processes
- Precise supply and monitoring of chemical solution in fuel cell manufacturing processes

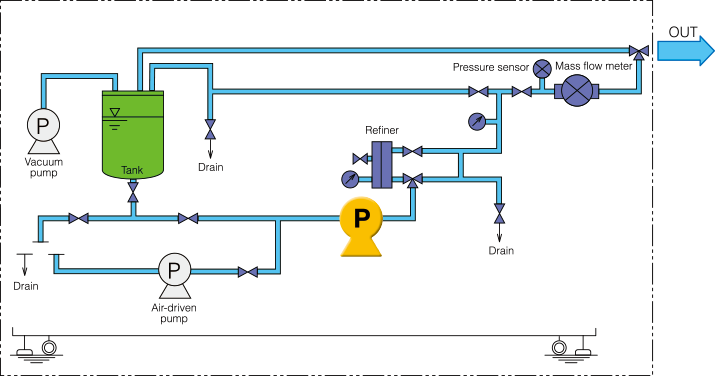

Flow diagram Flow chart
Example of performance specifications
Please contact us for details of customized specications.
Tank Capacity | 15L |
---|---|
Pump feed volume | Up to 1.2L/min |
Pump feed pressure | Up to 0.5MPa |
Weight | Approx. 350kg |
External dimensions (mm) | W1600 × H1500 × D900 |
